Scope signals crossed?

PaulELong

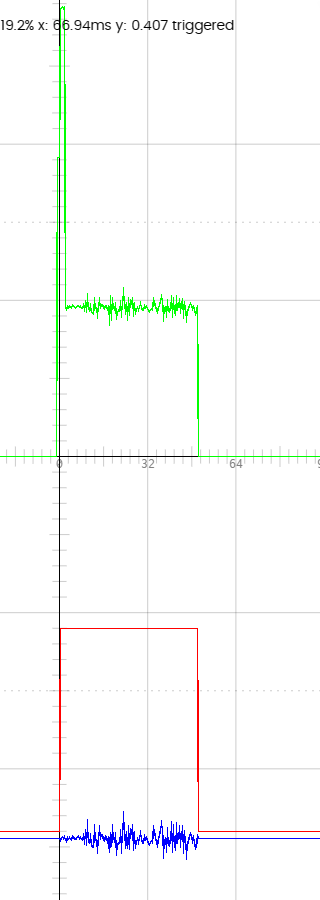

I'm trying to use the scope with some Supercollider code that triggers waves from the digital ins. When I use two scopes it shows correctly, but when I use 3, the 3rd signal seems to bleed into the first one? In the image, the green wave should be a quick blip, and shows correctly when I comment out the belaScope(2) line. Is this a bug?

Trying to fix the code snippet, seems to divide into separate boxes.

s = Server.default;

s.options.numAnalogInChannels = 8;
s.options.numAnalogOutChannels = 2;
s.options.numDigitalChannels = 16;


s.options.belaMaxScopeChannels = 3;

s.options.numMultiplexChannels = 0; // do not enable multiplexer channels

s.options.blockSize = 128;

s.waitForBoot({
	var digitalPins = [ 0, 1, 2, 3, 4, 5, 6, 7];
	var triggerCount = 1;

  	SynthDef(\trigDetector, {
		arg ctlBus, deviceId;

		var all = Array.fill(digitalPins.size, { |i|
		    DigitalIn.ar(digitalPins[i]);
		});

		// Convert all the bit array to a binary value
		var allId = all.reverse.reduce({ arg total, bit; total * 2 + bit }, 0);

		// Make sure they are set by delaying a little bit
		var delay_allId = TDelay.ar(in: allId, dur: 0.001);

		// Create bitmasks.
		//  velMask is how many bit used for velocity
		//  devMask used for devices, of which there are only 2
		var velMask = pow(2, digitalPins.size - triggerCount) -1;
		var devMask = pow(2, triggerCount) - 1;

		// Use the masks to get the velocity and device that was activated
		var velocity = allId.bitAnd(velMask);
		var device = (allId >> (digitalPins.size - triggerCount)).bitAnd(devMask);

		// scale button between 0 and 1 based on velMask
		var button = velocity / velMask;

		var signal = Trig.ar( Select.ar(abs(device - deviceId) < 0.1, [K2A.ar(0), delay_allId * button]), 0.05);

		Out.ar(ctlBus, signal);
		Out.kr(ctlBus, signal);

		button.belaScope(2);
		SendTrig.ar(HPZ1.ar(delay_allId), 20, allId);
		// SendTrig.ar(HPZ1.ar(delay_allId), 21, deviceId);
	}).send(s);


	SynthDef(\playAndFree, {
		arg buf = 0, rate = 1.0, vol = 1.0, wetBus=0, volmultraw = 1.0;

		var sig = PlayBuf.ar(2, buf, BufRateScale.kr(buf) * rate, startPos: 0, doneAction: 2) * vol * volmultraw;
		Out.ar(wetBus, sig);
	}).send(s);

    SynthDef("sh",{
		arg buf=0, gate = 1, scale = 1.0, trigBus = -1, wetBus, vol = 0.6, loop = 0, t_reset = 0;

	    var main_eg = EnvGen.kr(Env.asr(0.01, 1, 0.1), gate, doneAction: 2);
		var trigVal = In.ar(trigBus);
	    // var trigVariableToProvideAccessToTheSynthControlInput = NamedControl.tr(\trigNameOfTheSynthControlInput, 0);
	    // var toggle = ToggleFF.kr(trigVariableToProvideAccessToTheSynthControlInput);
	    var toggle = ToggleFF.kr(trigVal > 0.01);
		var latch = SetResetFF.ar(trigVal, t_reset) ;
	    var gates = [toggle, toggle <= 0];
	    var egs = EnvGen.kr(Env.asr(0.01, 1, 0.01), gates);
	    var players = PlayBuf.ar(1, buf, BufRateScale.kr(buf),
	        gates,
	        startPos: 0 /*TRand.kr(
	        	0,
	        	BufFrames.kr(buf) * 0.5,
	        	gates
	        )*/
	        ,
			loop: loop * latch
	    );

	    var signal = ((players * egs).sum * (main_eg * vol * ((1.0 - scale) + (trigVal*scale))  )).dup;
	    Out.ar(wetBus, signal);

      	signal.belaScope(1);
      	trigVal.belaScope(0);
    }).send(s);

  SynthDef("simpleTrig", {
  		arg buf;
		//var trigger = Trig.ar(Impulse.ar(2), 1.6) * Trig.ar(Impulse.ar(1), 0.1);
		//SendReply.ar(Impulse.ar(2), "/trg", [10, 0.8, buf]);
		var snd=PlayBuf.ar(2, buf, BufRateScale.kr(buf), trigger: Impulse.ar(2));
		//Out.ar(0, snd);
  }).send(s);

  SynthDef("autoTrig",
  {
  	arg trigBus;

  	var trigger = Impulse.ar(1);
  	var randTrigger = Trig.ar(TRand.ar(0.3, 0.8, trigger) * trigger, 0.1);
  	randTrigger.belaScope(0);

  	Out.ar(trigBus, randTrigger);
  }).send(s);

  SynthDef("scope2", {
  	arg ctlBus;

  	In.ar(ctlBus).belaScope(2);
  }).send(s);

  s.sync;

  b = Bus.audio(s, 1);
  c = Bus.audio(s, 1);

  Synth.new("scope2", [\ctlBus, b]);
  k = Buffer.read(s, "/root/src/HarmProject/data/samples/Ride.wav");
  j = Buffer.read(s, "/root/src/HarmProject/data/samples/Kick2.wav");


  Synth.new("sh", [\buf: k, \trigBus: b]);
  Synth.new("sh", [\buf: j, \trigBus: c]);
  Synth.new("trigDetector", [\deviceId, 0.0, \ctlBus, b]);
  Synth.new("trigDetector", [\deviceId, 1.0, \ctlBus, c]);

// enable this synth to test when you don't have a digital in
  Synth.new("autoTrig", [\trigBus: b]);



  o = OSCFunc({
  	arg msg, time;

	[time, msg].postln;
  },'/tr');

	k.postln;
	j.postln;
  "Ready ".postln;
  s.sync;

});

  "Waiting for quit ".postln;
ServerQuit.add({ 0.exit }); // quit if the button is pressed

giuliomoro

Try this with blocksize=16, which is probably what was used to test it initially

PaulELong

Changing the block size doesn't seem to make a difference.

giuliomoro

it seems you have:

// in \trigDetector
button.belaScope(2);

// in "sh":
signal.belaScope(1);
trigVal.belaScope(0);

// in "autoTrig":
randTrigger.belaScope(0);

// in "scope2":
In.ar(ctlBus).belaScope(2);

Then I see that you instantiate sh and trigDetector twice each and scope2 and autoTrig once each. I am not sure what happens if you send more than one value at once to the same belaScope() channel. I am unsure whether that's supported, which could be what's causing the issue.

PaulELong

Not sure what happened, but I cleaned up the code and made it more simple with only one ref to each scope. I tried on two different bela mini's with the same result. Can you repro? Any wav file should do the trick.

Btw, not sure why it keeps messing up my code sections.

s = Server.default;

s.options.numAnalogInChannels = 8;
s.options.numAnalogOutChannels = 2;
s.options.numDigitalChannels = 16;

s.options.belaMaxScopeChannels = 3;

s.options.numMultiplexChannels = 0; // do not enable multiplexer channels

s.options.blockSize = 16; // was 128

s.waitForBoot({

    SynthDef("sh",{
		arg buf=0, gate = 1, scale = 1.0, trigBus = -1, wetBus, vol = 0.6, loop = 0, t_reset = 0;

	    var main_eg = EnvGen.kr(Env.asr(0.01, 1, 0.1), gate, doneAction: 2);
		var trigVal = In.ar(trigBus);

	    var toggle = ToggleFF.kr(trigVal > 0.01);
		var latch = SetResetFF.ar(trigVal, t_reset) ;
	    var gates = [toggle, toggle <= 0];
	    var egs = EnvGen.kr(Env.asr(0.01, 1, 0.01), gates);
	    var players = PlayBuf.ar(1, buf, BufRateScale.kr(buf),
	        gates,
	        startPos: 0,
			loop: loop * latch
	    );

	    var signal = ((players * egs).sum * (main_eg * vol * ((1.0 - scale) + (trigVal*scale))  )).dup;
	    Out.ar(wetBus, signal);

      	signal.belaScope(1);
      	trigVal.belaScope(0);
    }).send(s);

  SynthDef("autoTrig",
  {
  	arg trigBus;

  	var trigger = Impulse.ar(1);
  	var randTrigger = Trig.ar(TRand.ar(0.3, 0.8, trigger) * trigger, 0.1);

  	Out.ar(trigBus, randTrigger);
  }).send(s);

  SynthDef("scope2", {
  	arg ctlBus;

  	In.ar(ctlBus).belaScope(2);
  }).send(s);

  s.sync;

  b = Bus.audio(s, 1);

  Synth.new("scope2", [\ctlBus, b]);

  k = Buffer.read(s, "/home/paul/src/HarmProject/data/samples/Ride.wav");

  Synth.new("sh", [\buf: k, \trigBus: b]);

  Synth.new("autoTrig", [\trigBus: b]);
});

giuliomoro

PaulELong Btw, not sure why it keeps messing up my code sections

You keep using single bacticks around them. You should use triple backticks instead

PaulELong

Oh, I was just using the </> button which adds single quotes only. Perhaps that button is broke 🙂

giuliomoro

sorry I just got to testing this today. Your code seems to work for me, but as I don't understand it I struggle to know whether that's true. Something simpler like the code below seems to work fine for me on both Bela and BelaMini, can you confirm it works for you?

s = Server.default;

s.options.numAnalogInChannels = 8;
s.options.numAnalogOutChannels = 2;
s.options.numDigitalChannels = 16;

s.options.belaMaxScopeChannels = 3;

s.options.numMultiplexChannels = 0; // do not enable multiplexer channels

s.options.blockSize = 16;

s.waitForBoot({
        SynthDef("scope01", {
                var sin0 = SinOsc.ar(50);
                var sin1 = SinOsc.ar(75);
                sin1.belaScope(1);
                sin0.belaScope(0);
        }).send(s);
       SynthDef("scope2", {
                var sin2 = SinOsc.ar(100);
                sin2.belaScope(2);
        }).send(s);
        s.sync;
        Synth.new("scope01");
        Synth.new("scope2");
});
